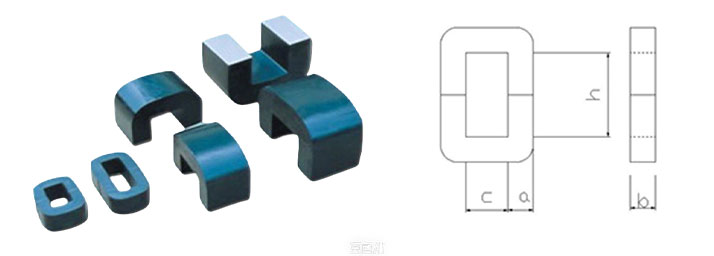

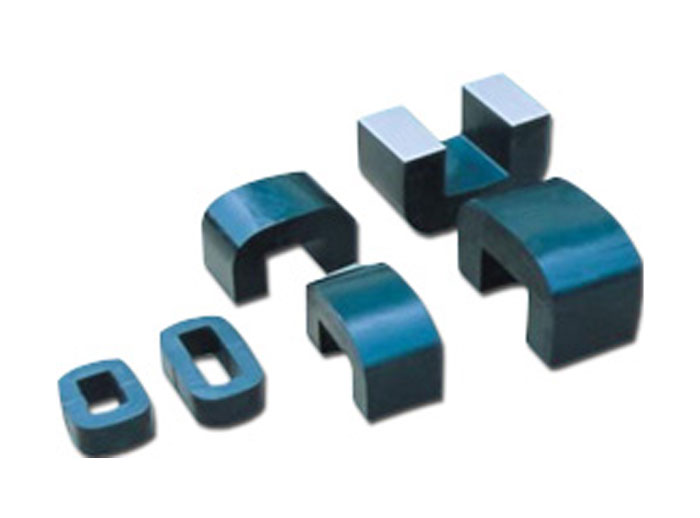

Type CD core
Characteristics
Computer controlled continuously wound silicon steel strips are precisely ground after cutting to ensure maximum recovery of capacity. Mainly appearing in single-phase and three-phase situations. Known for low loss and high magnetic saturation.
Applications
Power Transformers / Transducers / Mutual Inductors Reactors / Inductors / Welding Transformers / Special transformers
Product Application
Technical Parameter
| Core type | Size mm | Output power | Core type | Size mm | Output power | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | h | 50Hz | 400Hz | a | b | c | h | 50Hz | 400Hz | ||
| CD6.5*12.5*8 | 6.5 | 12.5 | 8 | 8 | 5.1 | CD16*32*40 | 16 | 32 | 25 | 40 | 71 | 466.8 | |
| 10 | 10 | 7.64 | 50 | 50 | 94 | 575.4 | |||||||
| 12.5 | 12.5 | 11.9 | 65 | 65 | 127 | 703 | |||||||
| 16 | 16 | 15.2 | 80 | 80 | 159 | 933 | |||||||
| CD8*12.5*12.5 | 8 | 12.5 | 10 | 12.5 | 24.9 | CD20*40*50 | 20 | 40 | 32 | 50 | 190 | 724 | |
| 16 | 16 | 34.4 | 60 | 60 | 225 | 850 | |||||||
| 20 | 20 | 43.4 | 80 | 80 | 295 | 1073 | |||||||
| 25 | 25 | 53.5 | 100 | 100 | 362 | 1330 | |||||||
| 10 | 12.5 | 12.5 | 20 | 1.2 | 60.6 | CD25*50*65 | 25 | 50 | 40 | 65 | 427 | 1402 | |
| 25 | 25 | 1.6 | 74.2 | 80 | 80 | 521 | 1678 | ||||||
| 32 | 32 | 2.3 | 94.9 | 100 | 100 | 635 | 2020 | ||||||
| 40 | 40 | 3 | 115.2 | 120 | 120 | 796 | 2346 | ||||||
| CD12.5*16*25 | 12.5 | 16 | 16 | 25 | 5.9 | 123.4 | CD32*64*80 | 32 | 64 | 50 | 80 | 955 | 2696 |
| 32 | 32 | 7.9 | 154.9 | 100 | 100 | 1135 | 3263 | ||||||
| 40 | 40 | 10.4 | 189.1 | 130 | 130 | 1416 | 3979 | ||||||
| 50 | 50 | 13.4 | 299.7 | 160 | 160 | 1743 | 4800 | ||||||
| CD12.5*25*30 | 12.5 | 25 | 20 | 30 | 18 | 221.4 | CD40*80*100 | 40 | 80 | 64 | 100 | 2010 | 5424 |
| 40 | 40 | 26 | 285.1 | 120 | 120 | 2362 | 6228 | ||||||
| 50 | 50 | 34 | 341.5 | 160 | 160 | 3144 | 7908 | ||||||
| 60 | 60 | 41 | 398.7 | 200 | 200 | 3749 | 9543 | ||||||
