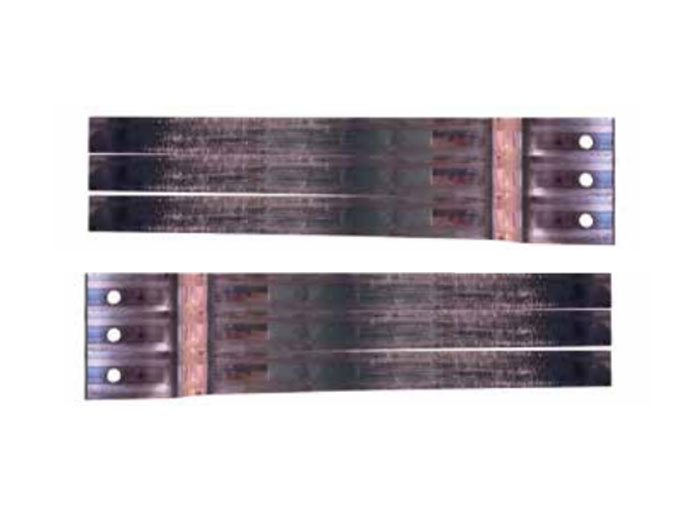

Copper Bus Bar
Technical Parameter
| Alloy | T2-Y |
|
Mold list(thickness*width) |
8×10；6×10；4×30；5×40；6×40；5×50；6×60；8×80； 8×100；10×120；10×150；12×120；12×150；15×150；6×30 |
| Property | Conductivity 98%, Resistivity ≤ 0.0175, Hardness:HV ≥ 85 |
| Dimension tolerance | R, thickness tolerance:±0.1mm |
| Lead time | Normal spec: 7~10 days, Nonstandard Spec: 10~15days |
| MOQ | ≥ 500KG/ spec |
| Unit price | SMM copper price on date of order+ fabrication cost |
